BHP-210D/280D/280DZ Horizontal Duplex Premade Bag Packing Machine

BHP-210D/280D/280DZ Boevan Horizontal Duplex Premade Packing Machine Series designed for premade bag to filling and sealing, more function, can pack all types of bag.

The packing machine has dual filling station, can reduced filling time by half and improved filling accuracy, has 3-pair top seal unit to ensure seal strength, even seal with good appearance. Also has air flushing device, can auxiliary flushing, improved bag opening success rate, can detected function, if bag opening not good, no filling, no sealing!

The pouch width range that the packing machine series can make is 75-140mm, the pouch length range that the packaging machine can make is 110-300mm, and the maximum filling capacity is 600ml, the packing speed is about 80-100ppm, has 13 stations and operates fully automatically.

contact us

PRODUCT DETAIL

Technical Parameter

Model Pouch Width Pouch Length Filling Capacity Packaging Capacity Function Weight Power Air Consumption Machine Dimensions(L*W*H)
BHP-210D 75- 105mm 1 10-300mm 400ml 80- 100ppm Flat Pouch, DoyPack 1100kg 4.5 kw 200 NL/min 3216×1190×1422mm
BHP-280D 90- 140mm 1 10-300mm 600ml 80- 100ppm Flat Pouch, DoyPack 2150kg 4.5 kw 500 NL/min 4300×970×1388mm
BHP-280DZ 90- 140mm 1 10-300mm 600ml 80- 100ppm Flat Pouch , DoyPack , Zipper 2150kg 4.5 kw 500 NL/min 4300×970×1388mm

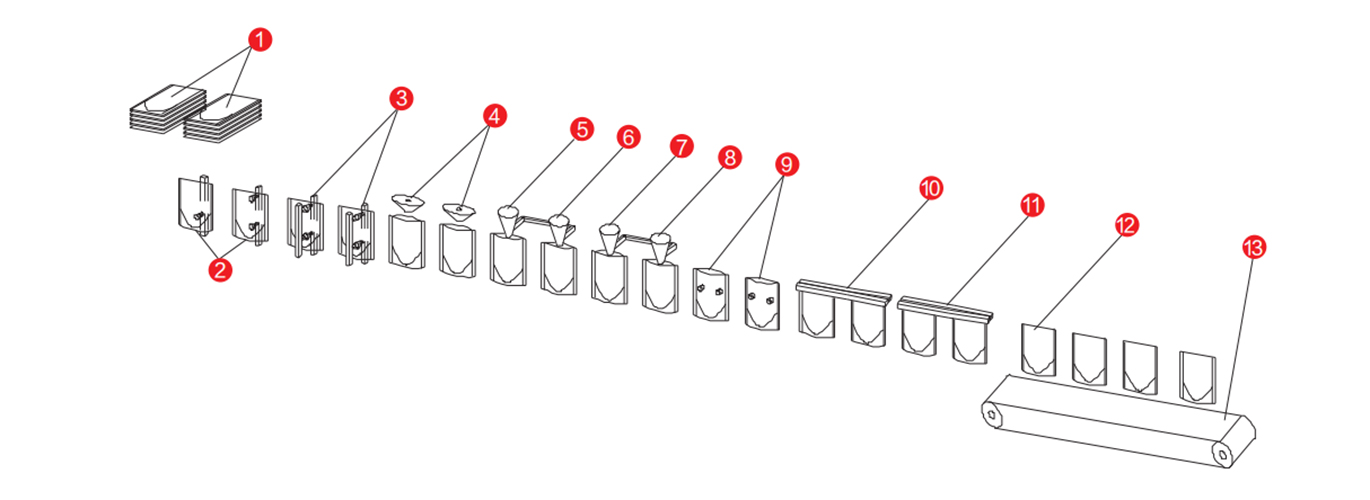

Packing Process

BHP-210D-280D-280DZ

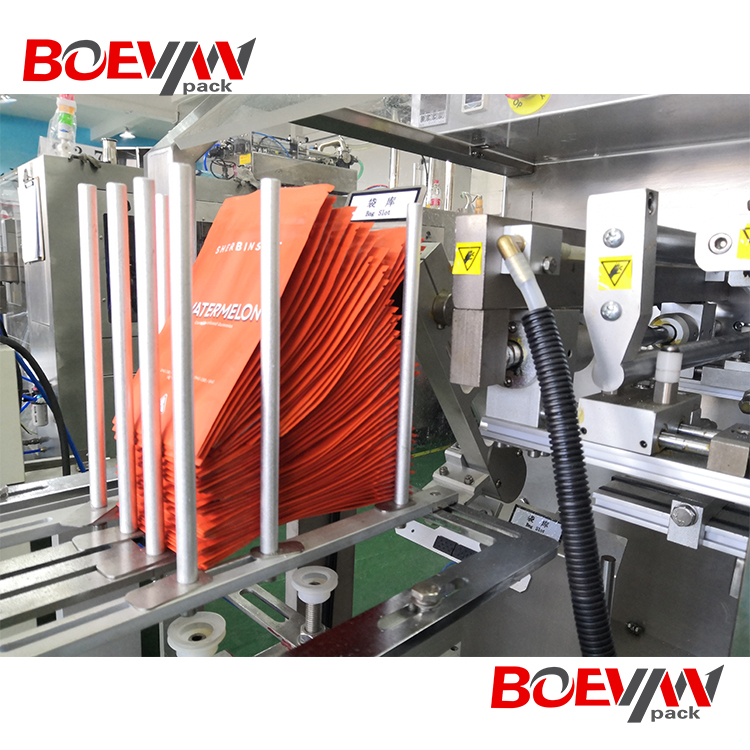

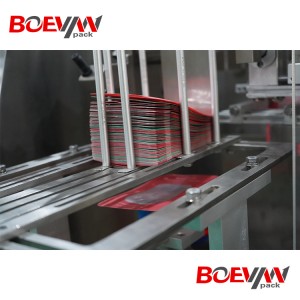

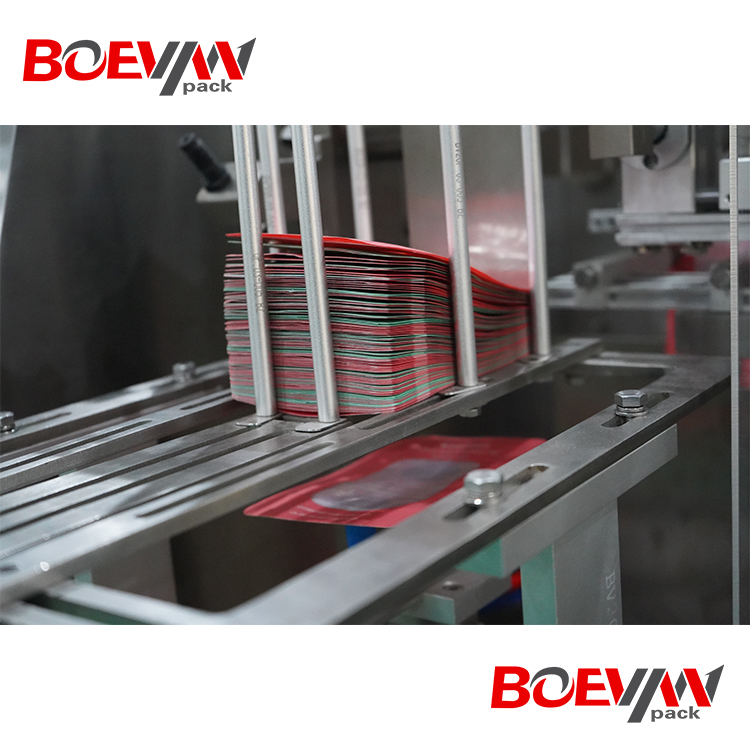

  • 1Premade Pouch Stack

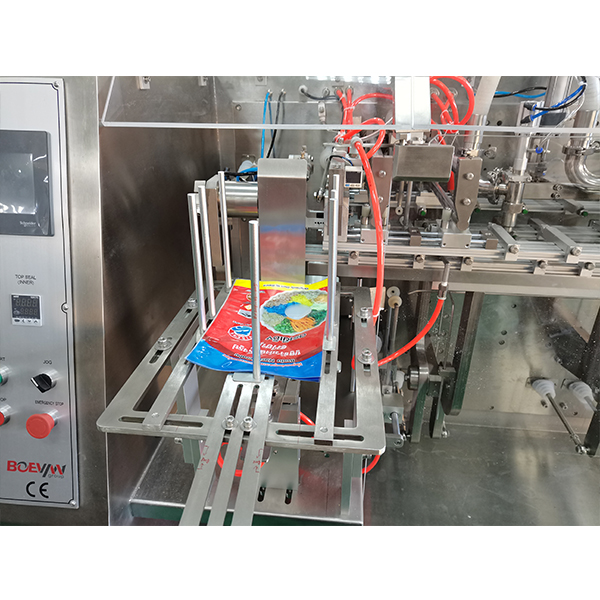

  • 2Flip-out-pouch-picking Unit
  • 3Pouch Opening
  • 4Air Flushing
  • 5Filling Ⅰ
  • 6Filling Ⅱ
  • 7Filling Ⅲ
  • 8Filling Iv
  • 9Auxiliary Pouch Strentching
  • 10Top Seal Ⅰ
  • 11Filling Ⅱ

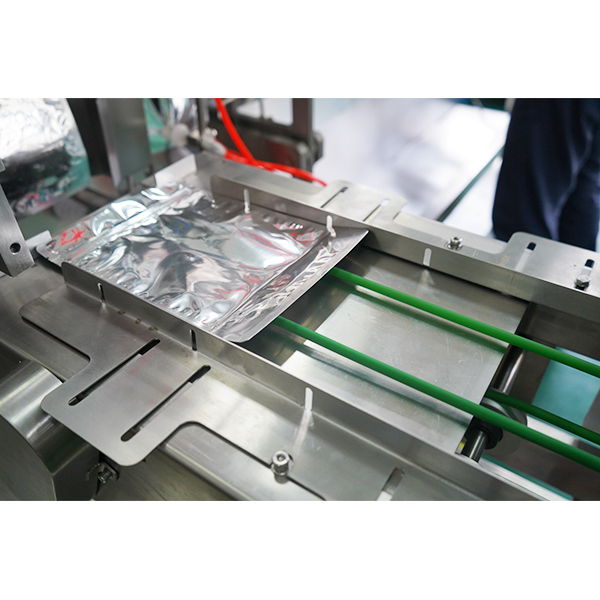

  • 12Finished Product
  • 13Outlet

Product Advantage

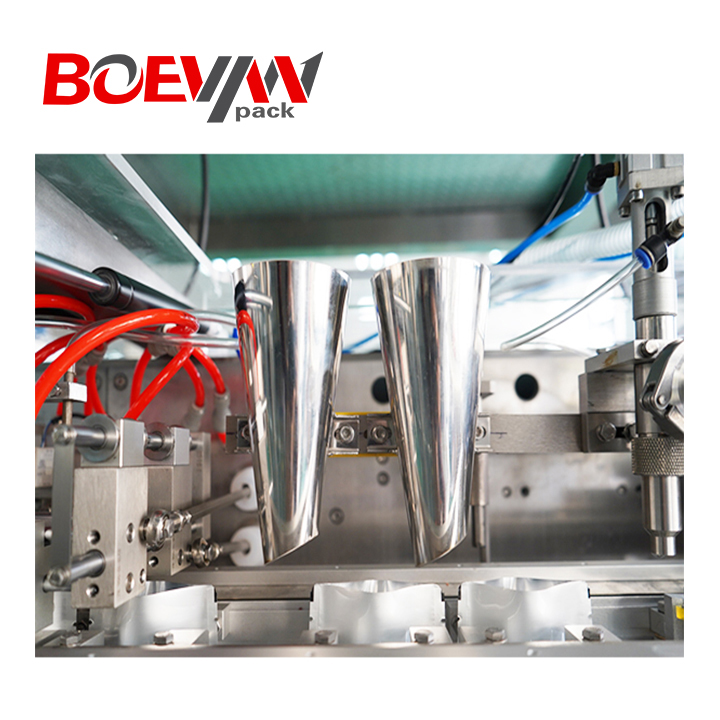

Dual Filling Station

Reduce filling time by half
Improved filling accuracy

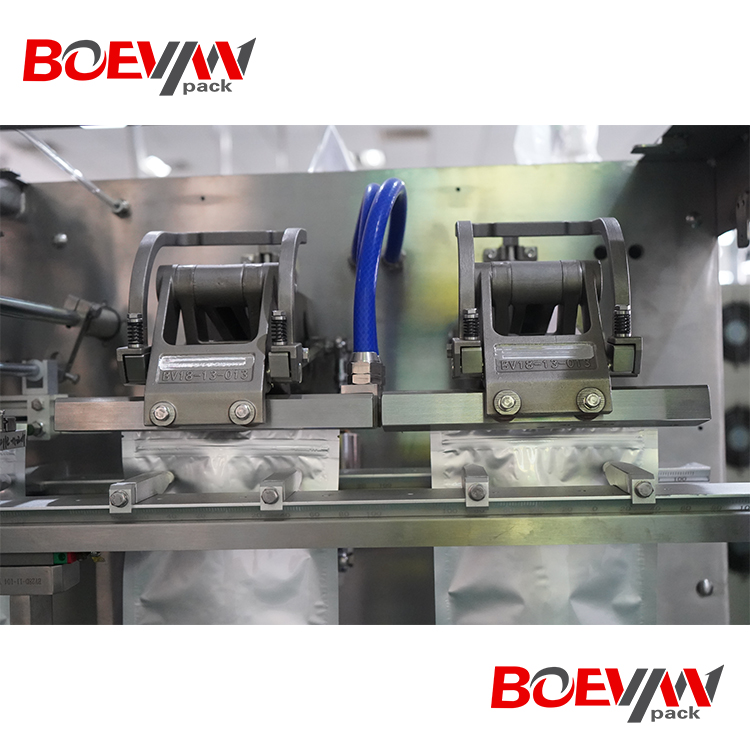

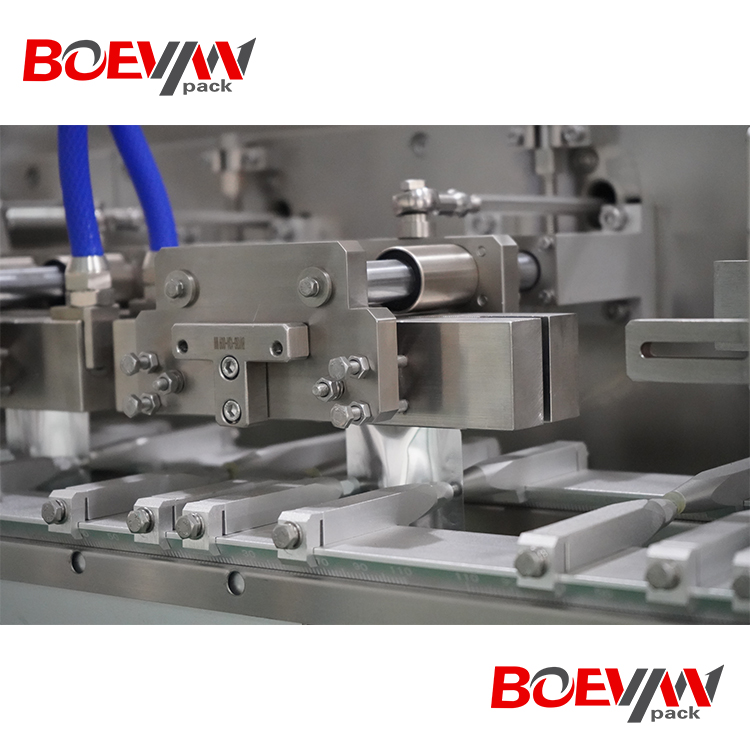

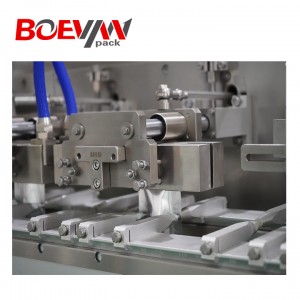

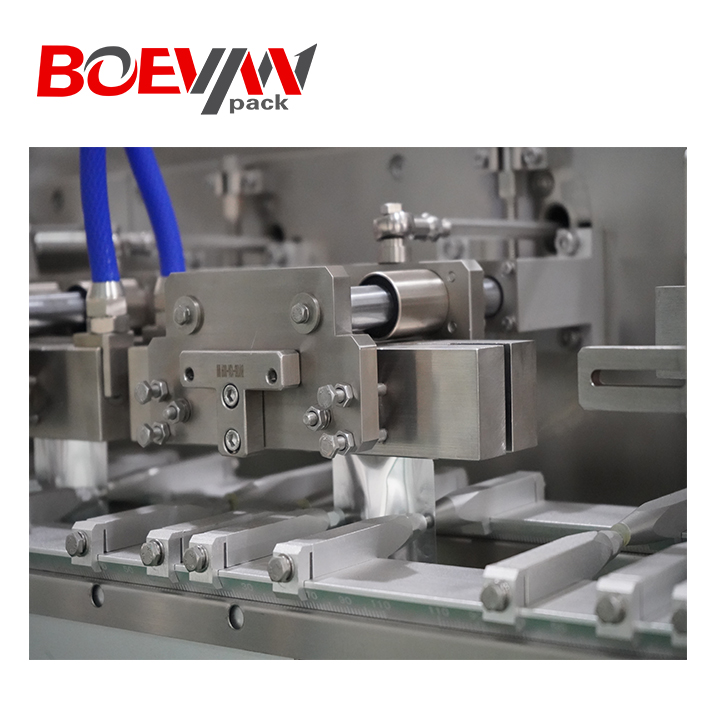

2-Pair Top Seal Unit

Ensure seal strength, no leakage
Even seal with good appearance
Higher adaptability of film material

Photocell System

Full spectrum detection, Accurate detection of all light sources
High speed motion mode

Product Application

BHP-210D/280D/280DZ Series premade & duplex design with Max speed 120ppm, offer flexible and economical solution for flat and doypack packing.

  • ◉Powder
  • ◉Granule
  • ◉Viscosity
  • ◉Solid
  • ◉Liquid
  • ◉Tablet
premade (4)
premade (3)
premade (2)
premade (1)
premade (5)
premade (1)
