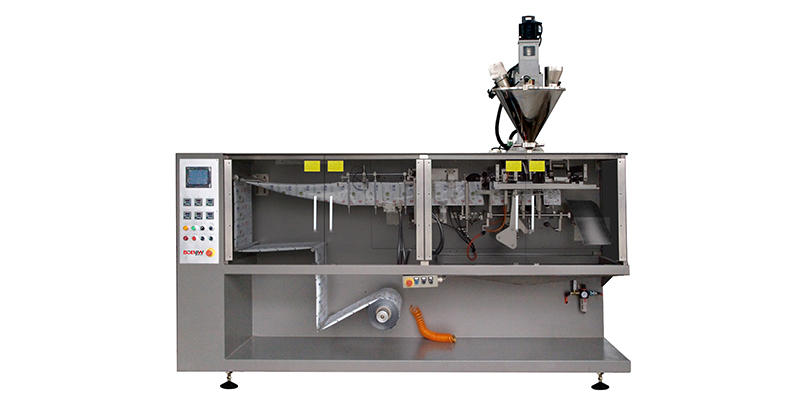

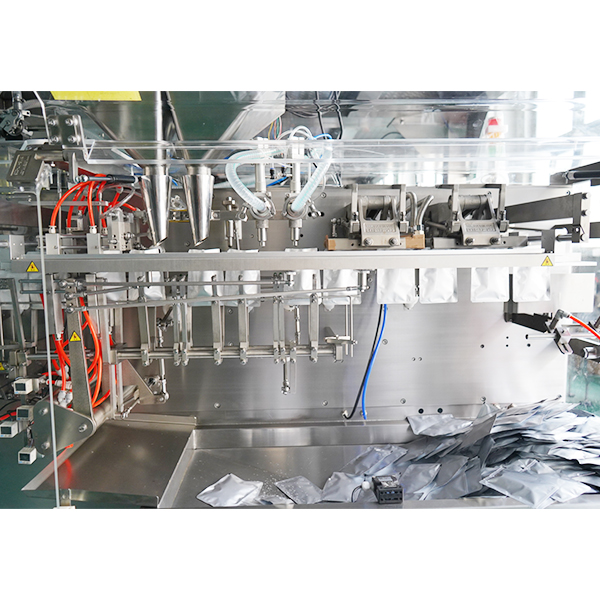

BHS-110/130 Horizontal Small Flat Sachet Packing Machine

BHS-110/130 Boevan Horizontal Flat Sachet Packaging Machine designed for small flat bags, can pack powder, granule, liquid, tablet, ect.

The packing machine occupies a small area. In terms of application, it is mainly designed for small flat bag packaging. The bag width range that the packing machine can make is 50-110mm, the bag length range that the packing machine can make is  50-130mm, the maximum filling capacity is 60ml, and the packaging speed is about 40-60ppm. Stable, firm sealing, wide application range.

The packing machine can independent pouch making, can improved seal strength, has light walking beam, can improved running speed, and operational life span.

contact us

PRODUCT DETAIL

Video

Technical Parameter

Model Pouch Width Pouch Length Filling Capacity Packaging Capacity Function Weight Power Air Consumption Machine Dimensions(L*W*H)
BHS- 110 50- 1 10mm 50- 130mm 60ml 40-60ppm 3 side seal,4 side seal 480kg 3.5 kw 100 NL/min 2060×750×1335mm
BHS- 130 60- 140mm 80-220mm 400ml 40-60ppm 3 side seal,4 side seal 600kg 3.5 kw 100 NL/min 2885×970×1535mm

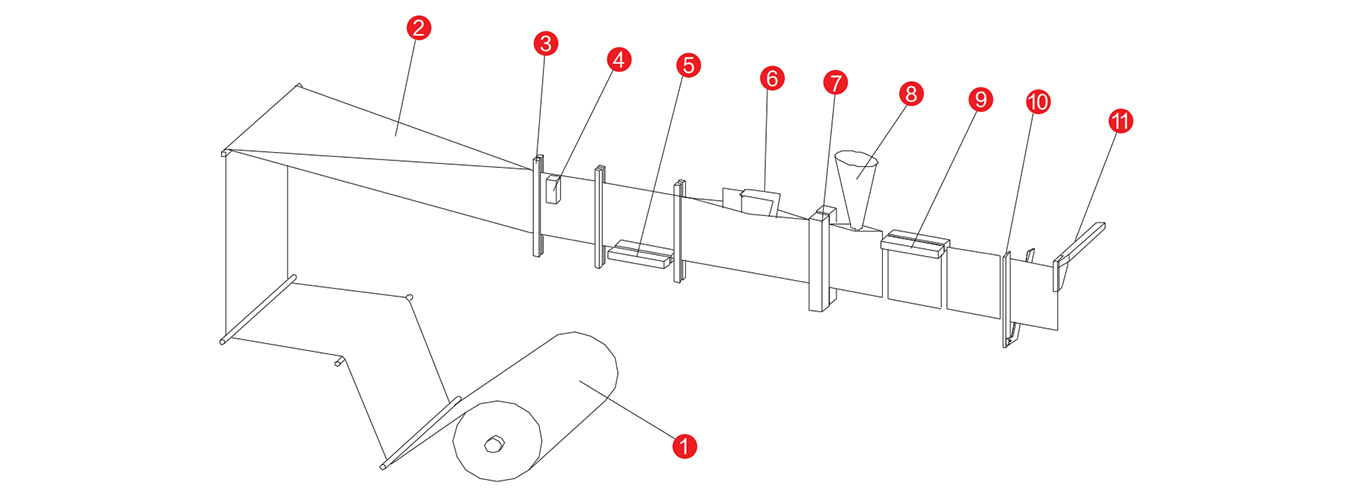

Packing Process

BHS-110130

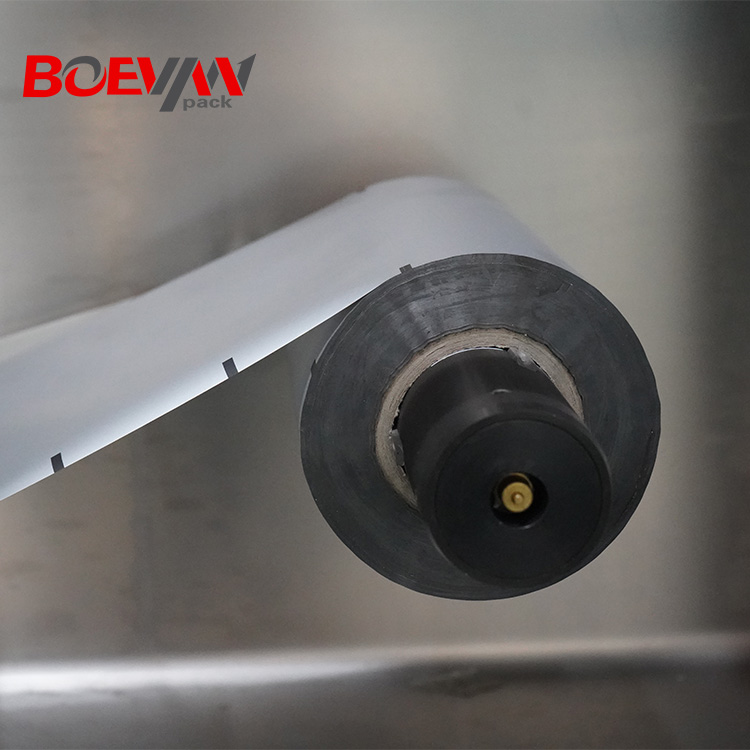

  • 1Film Unwinding Device
  • 2Bag Forming Device

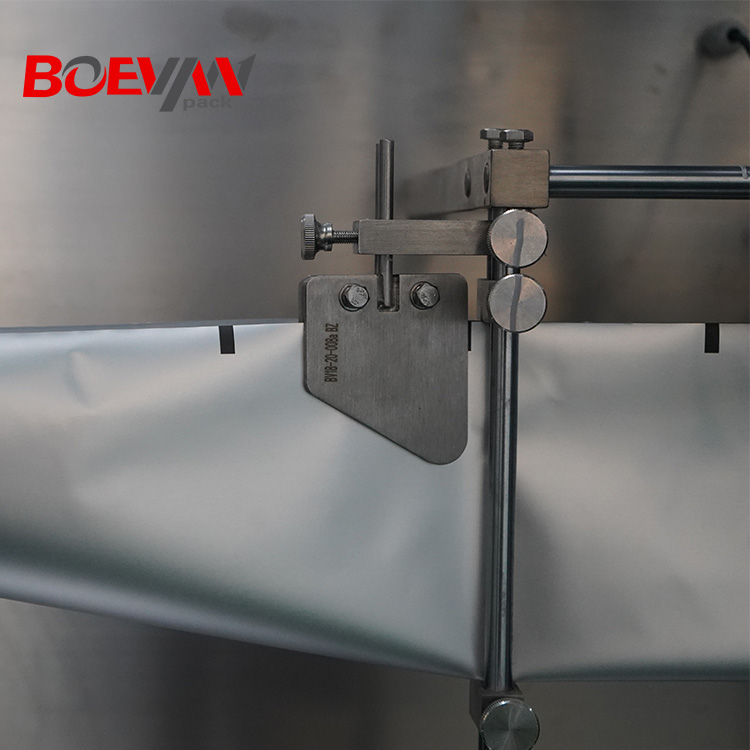

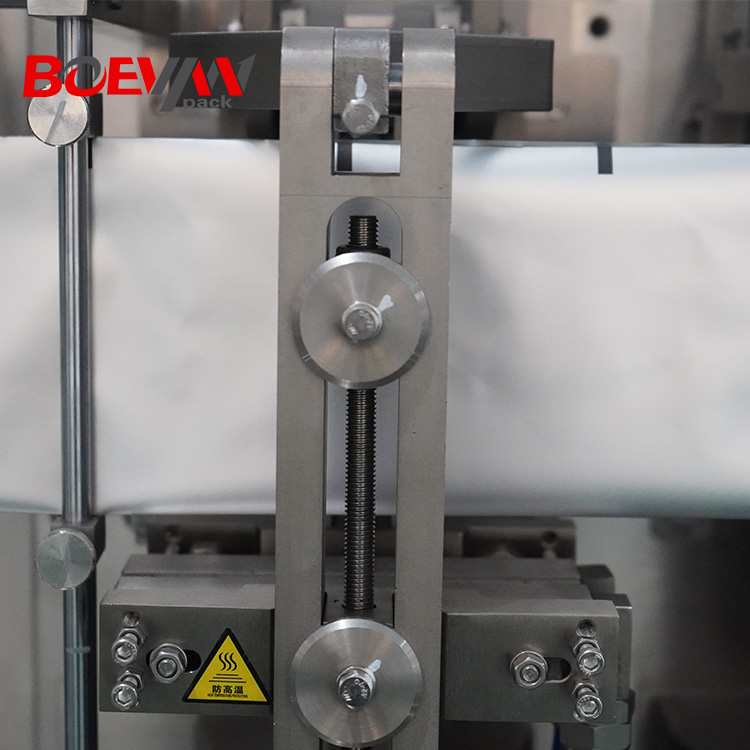

  • 3Film Guide

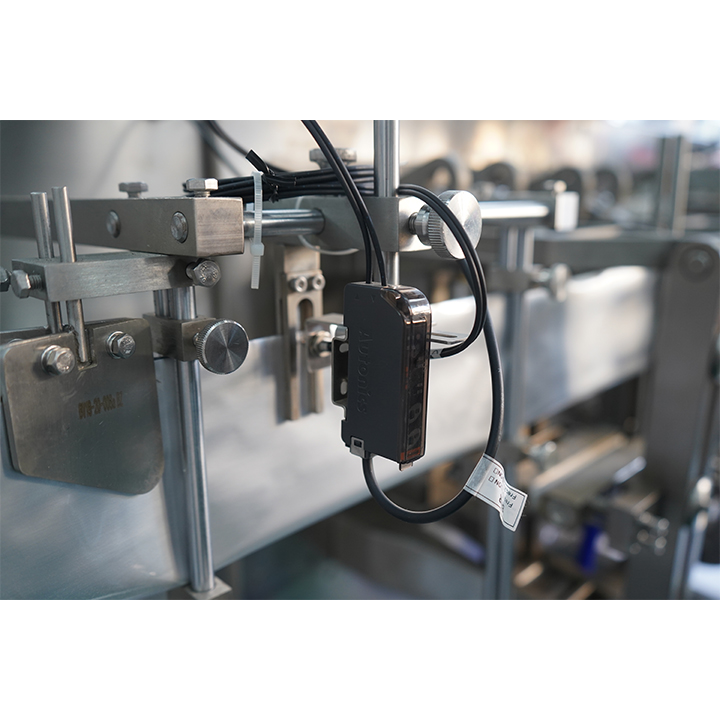

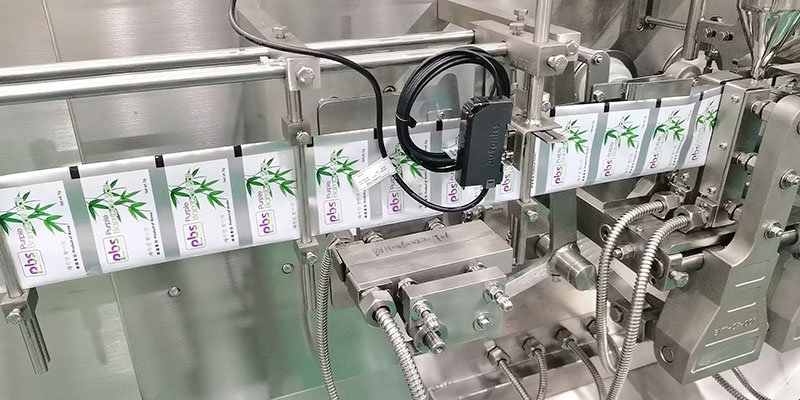

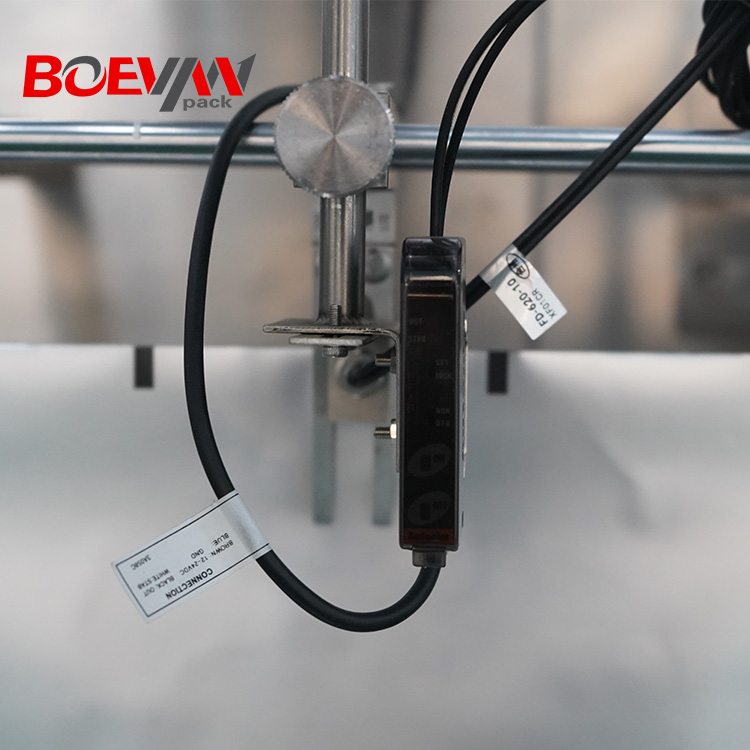

  • 4Photocell
  • 5Bottom Seal
  • 6Pouch Opening
  • 7Vertical Seal

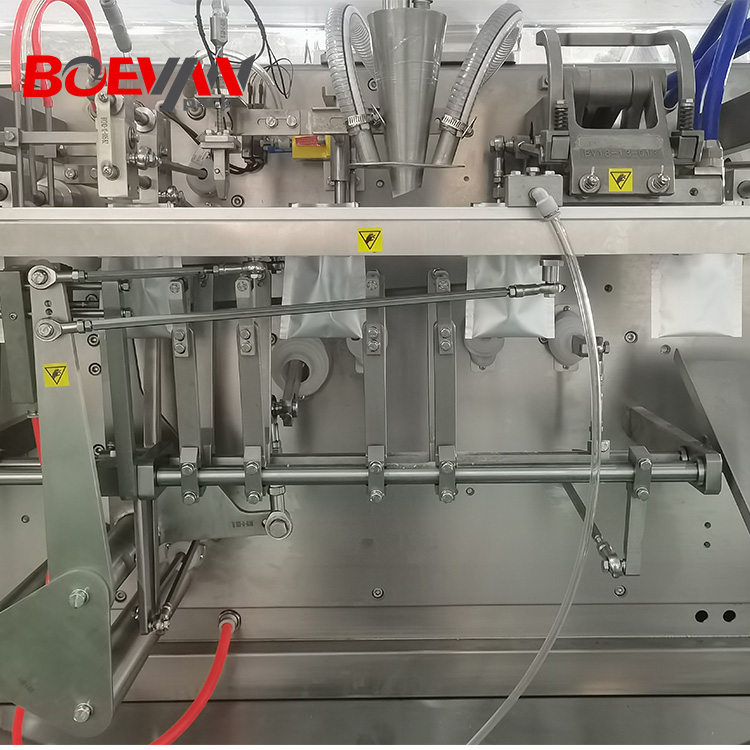

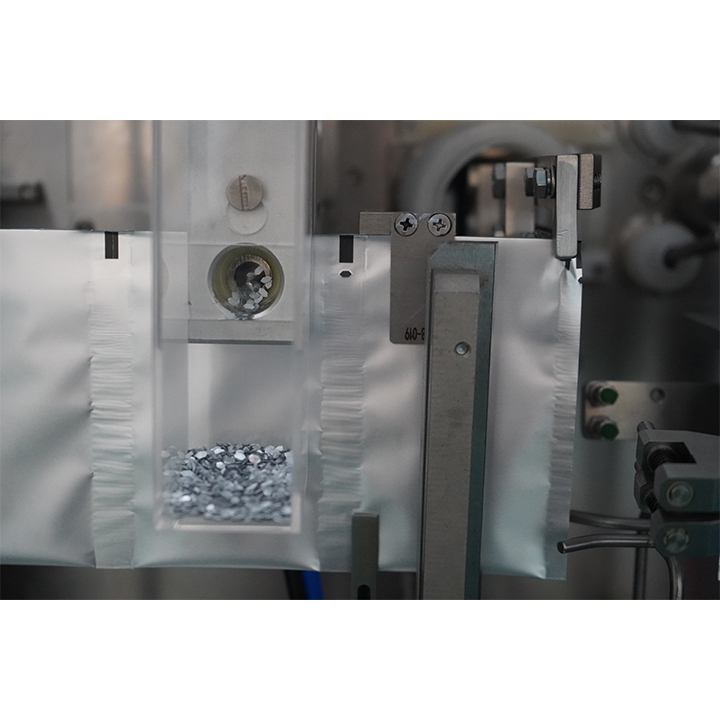

  • 8Filling Device
  • 9Top Seal
  • 10Cutting Device
  • 11Pouch Pulling

Product Advantage

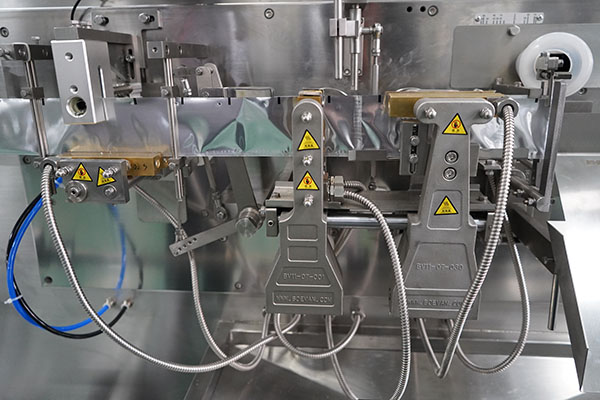

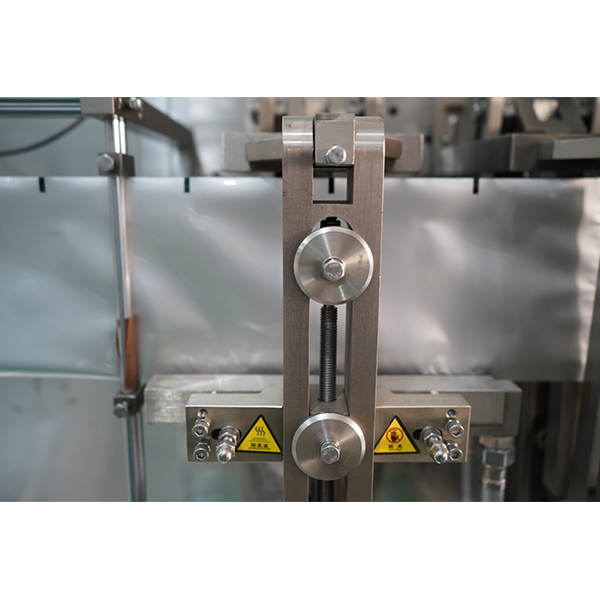

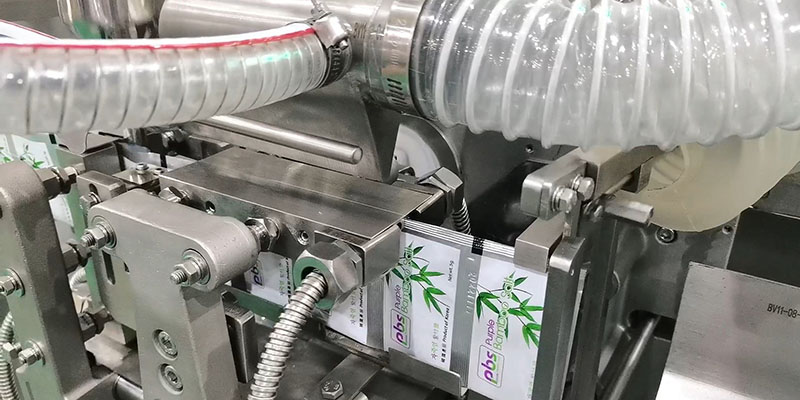

Independent Sealing Device

Independent Sealing Device

Independent pouch making, no product no seal
Higher seal strength, less leakage
Better pouch appearance

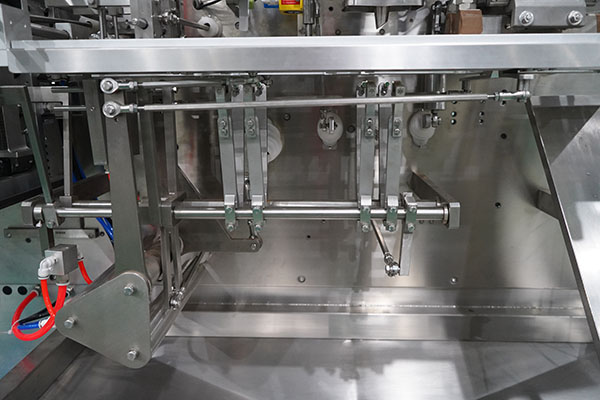

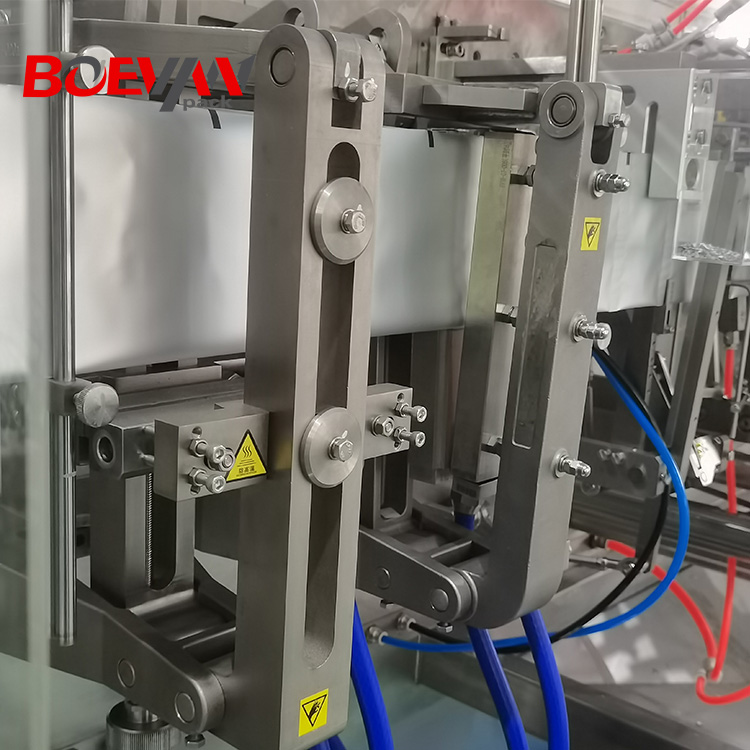

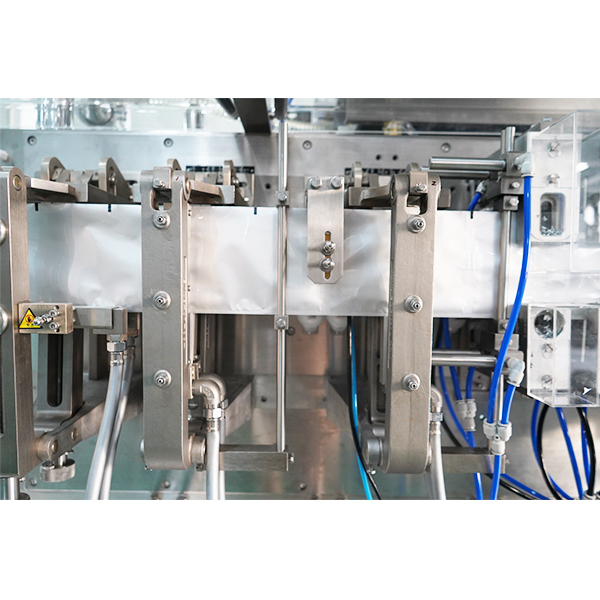

Light Walking Beam

Light Walking Beam

Higher running speed
Longer operational life span

Product Application

BHS-110/130 Standard model for small bags, flexible design for nice packing appearance.

  • ◉Powder
  • ◉Granule
  • ◉Viscosity
  • ◉Solid
  • ◉Liquid
  • ◉Tablet
