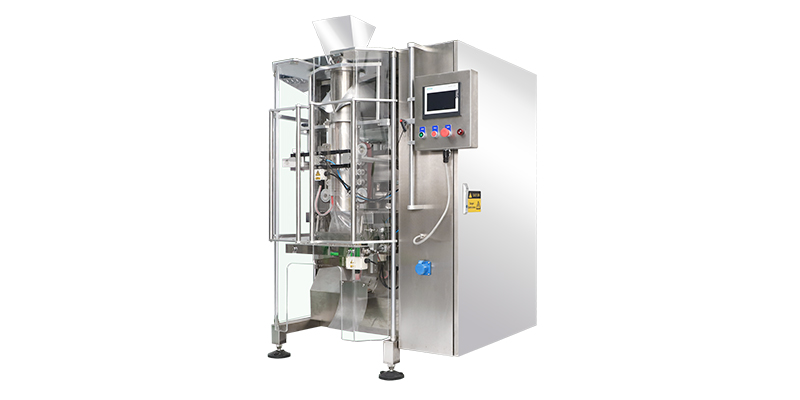

BVL- 420/520/620/720 Vertical Pillow Bag Packing Machine

BVL-420 Boevan Vertical Pillow Bag Packing Machine can make pillow bag and gusset pillow bag, the packaging machine can pack powder, granule, liquid, and soild, etc.,

The maximum loading capacity of the packaging machine is 5kg,has flexible horizontal sealing system, can adjust sealing pressure and open travel, suitable for various packaging material and bag type, high sealing strength without leakage, and integrated core control system, can improved integrate accuracy and reliability. Aslo has servo pulling system, can make packing machine running stably, reduce operating noise.

contact us

PRODUCT DETAIL

Video

Technical Parameter

Model Poudi Size Packaging Capacity
Standad Mode High-speed Mode
Powder & Air Consumption Weight Machine Dimensions
BVL-423 W 80-200mm H 80-300mm 25-60PPM Max.90PPM 3.0KW6-8kg/m2 500kg L1650xW1300x H1700mm
BVL-520 W 80-250mm H 100-350mm 25-60PPM Max.90PPM 5.0KW6-8kg/m2 700kg L1350xW1800xH1700mm
BVL-620 W 100-300mmH 100-400mm 25-60PPM Max.90PPM 4.0KW6-IOkg/m2 800kg L1350xW1800xH1700mm
BVL-720 W 100-350mmH 100-450mm 25-60PPM Max.90PPM 3.0KW6-8kg/m2 900kg L1650xW1800xH1700mm

Optional Device

  • 1Air Flushing System
  • 2Hole Punching Device
  • 3Static Charge Eliminator
  • 4Nitrogen Gas Flushing System
  • 5Flip Device
  • 64-Line Folding Device
  • 7Gusset Device
  • 8Tear Notch Device
  • 9Film Tracking Device
  • 10Air Expeller
  • 11Material Clampling Proof Device

★Different products and packing volume will cause speed variation.

Product Application

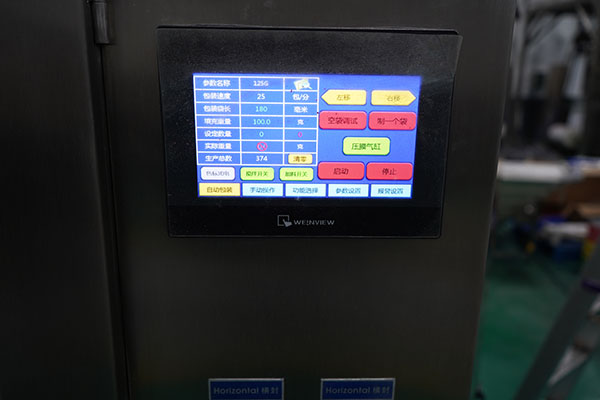

Integrated Core Control System

Integrated Core Control System

PLC, Touch screen, Servo and Pneumatic system compose the drive and control system with higher integration, accuracy and reliability.

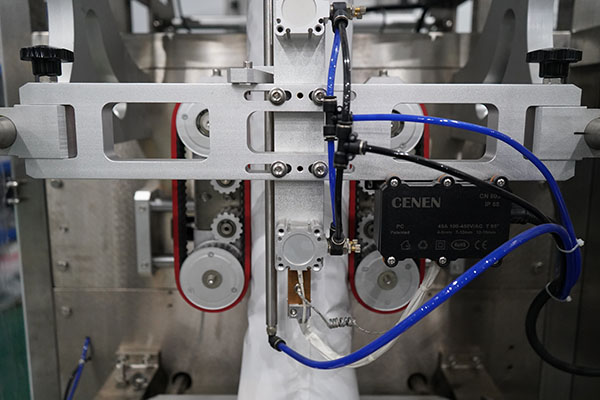

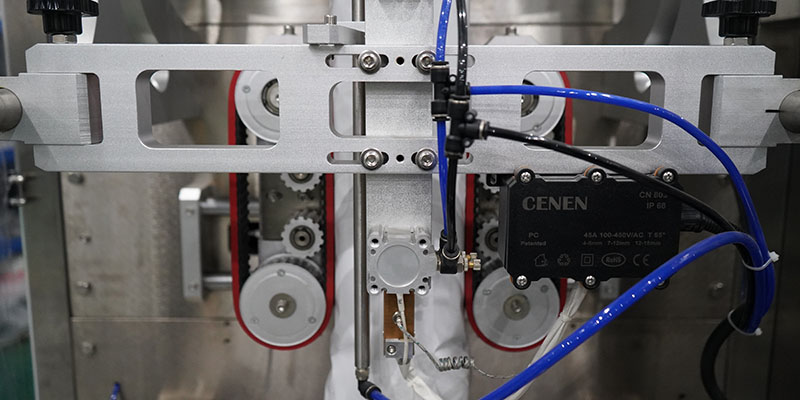

Flexible Horizontal Sealing System

Flexible Horizontal Sealing System

Easy to adjust sealing pressure and open travel, suitable for various packaging material and bag type, high sealing strength without leakage.

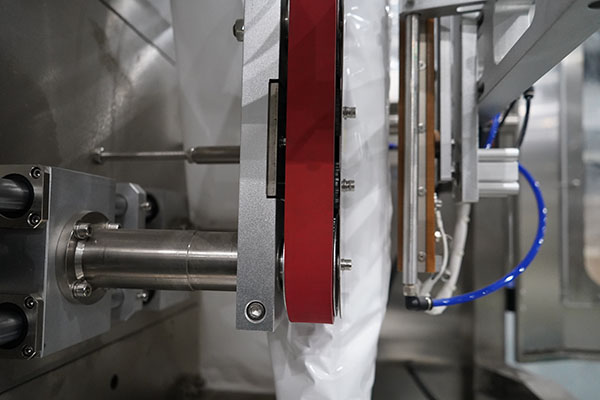

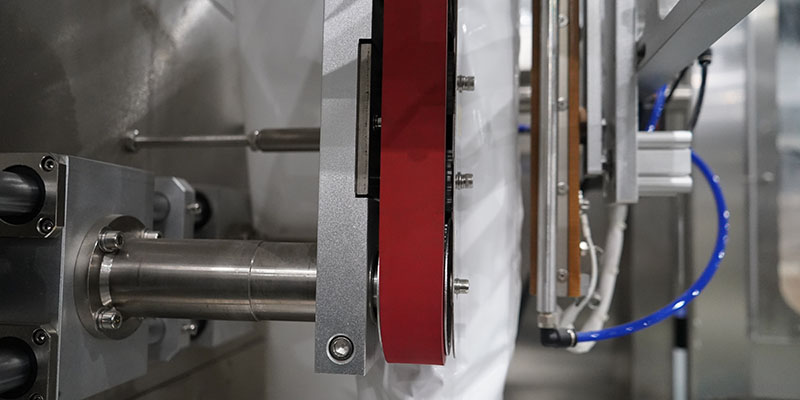

Servo Pulling Sytem

Servo Pulling Sytem

Higher accuracy in bag length, more smooth in film pulling, lower friction and operation noise.

Product Application

BVL-420/520/620/720 Large vertical packager can make pillow bag and gusset pillow bag.

  • ◉Powder
  • ◉Granule
  • ◉Viscosity
  • ◉Solid
  • ◉Liquid
  • ◉Tablet
veterial pillow (6)
veterial pillow (5)
veterial pillow (1)
veterial pillow (4)
veterial pillow (3)
veterial pillow (2)
