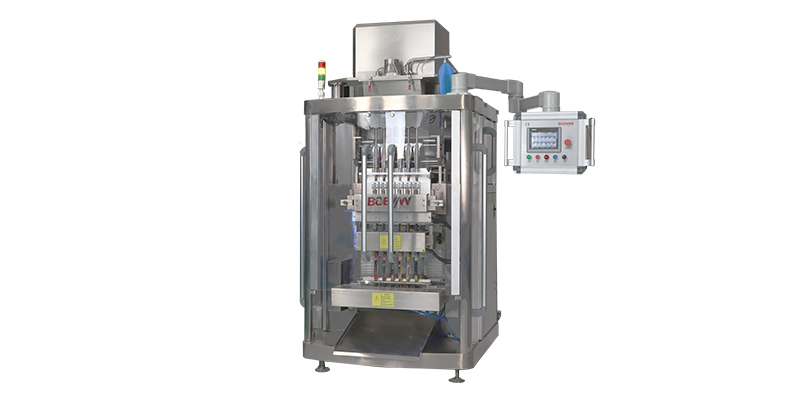

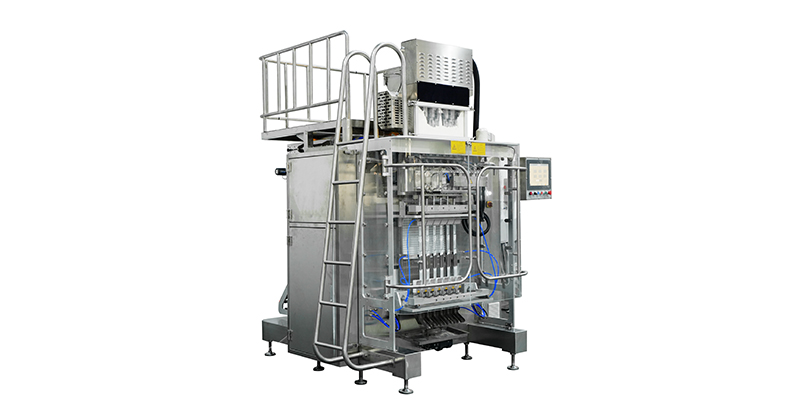

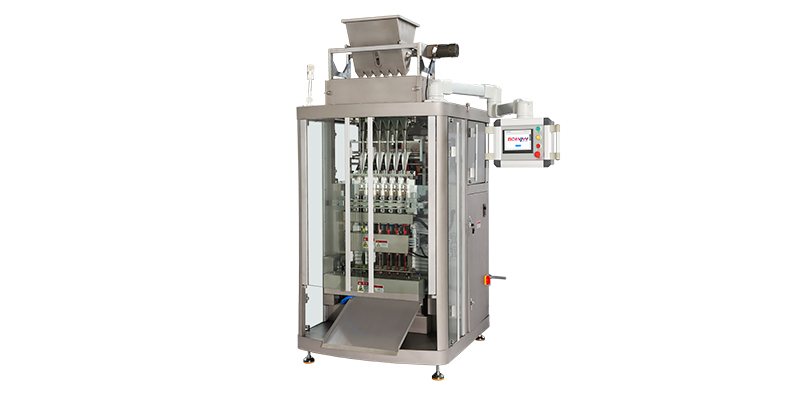

BVS 4-480/6-480/6-680/8-680 Vertical Multi-lane Stick Sachet Packing Machine

BVS 4-480/6-480/6-680/8-680 Boevan Multi-Lanes Stick Bag Packing Machine is available in 2-12 lanes, depending on actual speed and bag width.The multi-lane packing machine designed for back seal stick sachet that can pack powder, granule, liquid, and soild, etc.,

The Pouch length range that the packing machine can make is 50-180mm, the pouch width range that the packing machine can make is 17-50mm, the maximum filling capacity is 320ppm, and the packaging speed is about 50bags/min/lane. This is determined based on the number of lanes of the machine.

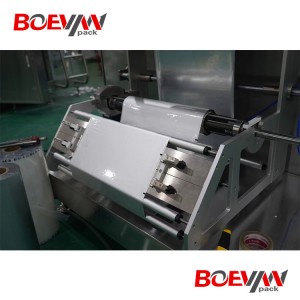

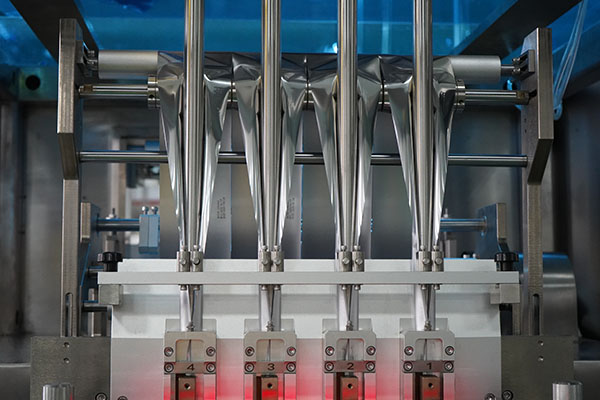

The packing machine has auto film-aligning system can avoid the problem of pouch sealing misalignment, has servo pouch-pulling system can stable pouch pulling with less deviation, large torquemoment qualified for full-load running.Also multi-lane filling make huge improved to packing speed and capacity, accurate filling, less deviation.

PRODUCT DETAIL

Video

Technical Parameter

Model	Pouch length	Pouch Width	Packaging Capacity	Film width	Lanes No	Weight	Machine Dimensions(LWH)
BVS 4-480	50-180	17-50	160	480mm	4	1800	1530×1880×2700mm
BVS 6-480	50-180	17-30	240	480mm	6	1900	1530×1880×2700mm
BVS 6-680	50-180	17-45	240	680mm	6	2000	1730×1880×2700mm
BVS 8-680	50-180	17-30	320	680mm	8	2100	1730×1880×2700mm

Equipment Characteristics

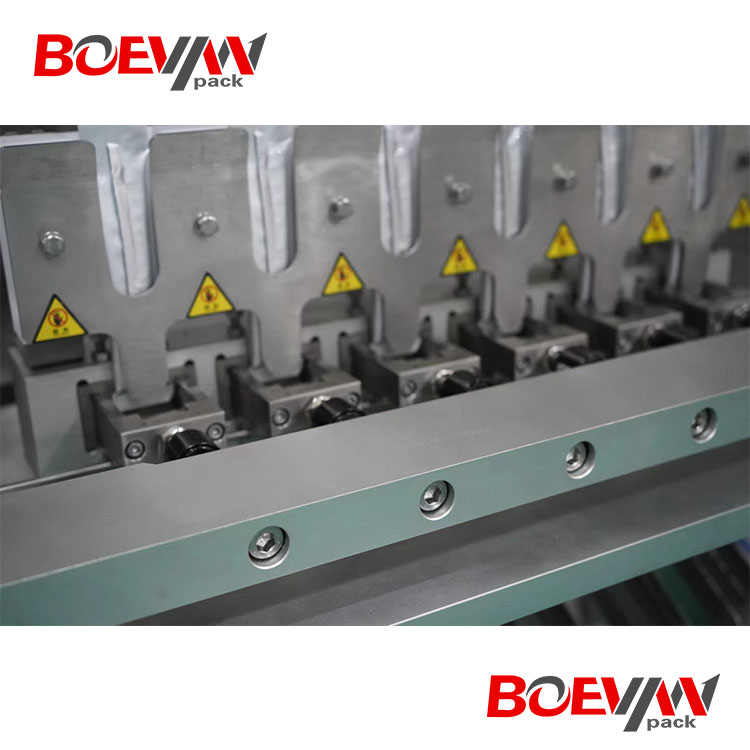

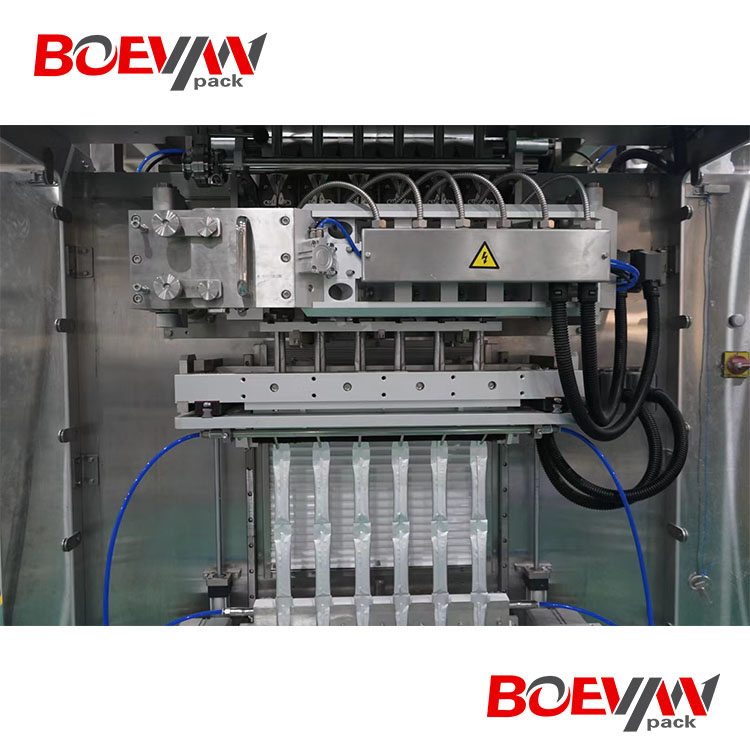

The automatic packaging machine can automatically complete the multi column automatic quantitative measurement, automatic filling, automatic bag making, sealing, cutting, printing production date and other functions.

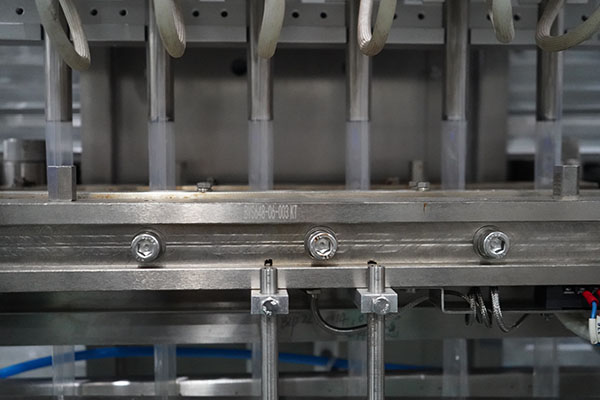

Running with servo pulling system,more stable,Higher accuracy

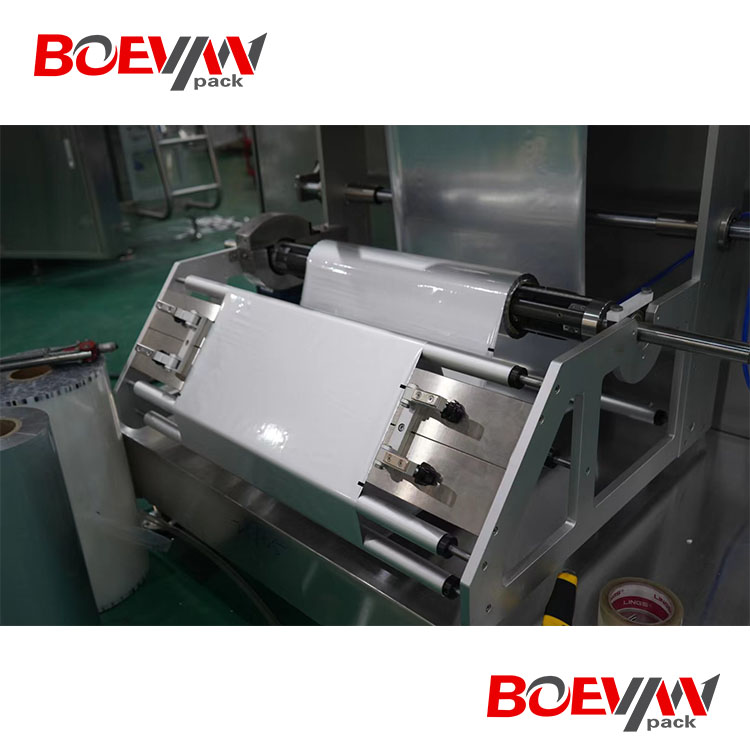

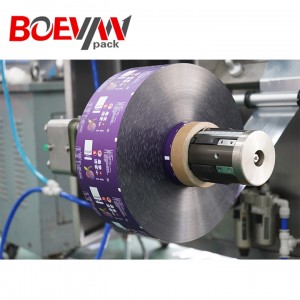

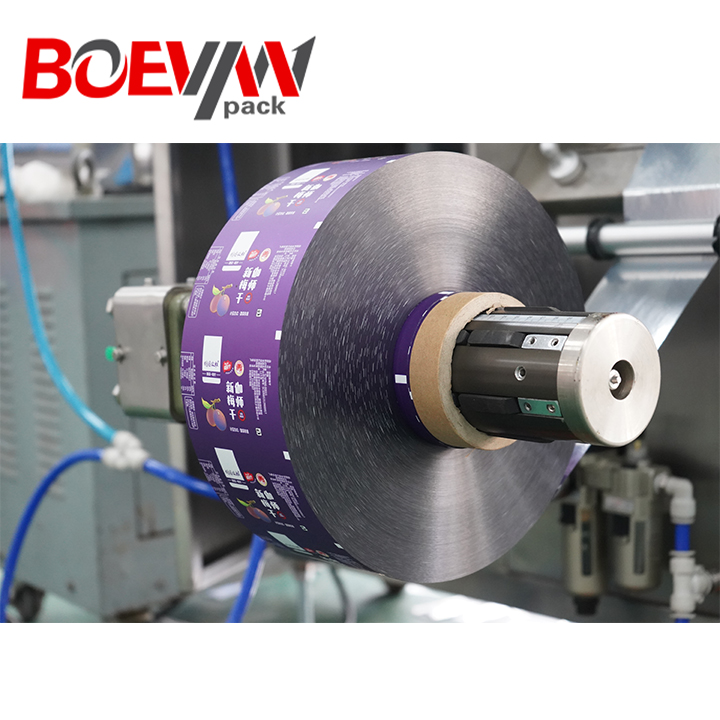

High sensitivity automatic electric eye tracking positioning printing cursor, packaging materials
packaging color, can obtain the complete logo.
PLC control, can be easily set on the touch screen control panel, adjust the packaging parameters. Visual display of production information, and fault alarm, self stop, self diagnosis function, safe and easy to use, easy maintenance.

Solution For Multilanes Stick Bag Packing Machine

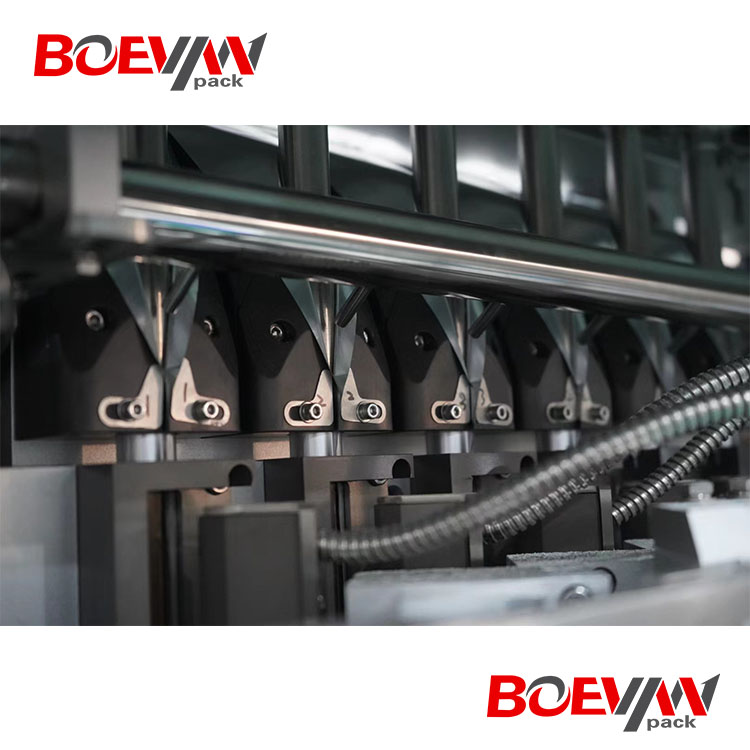

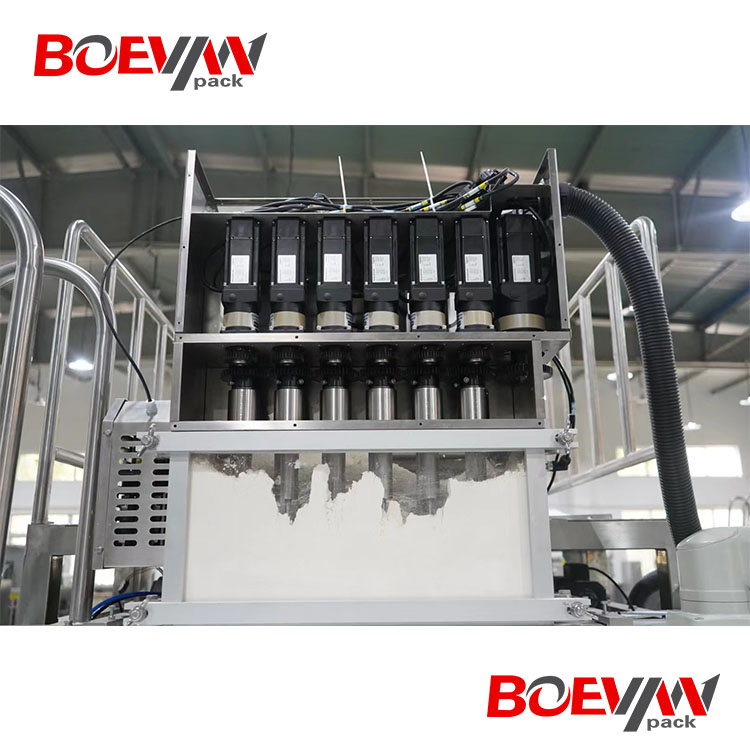

Multi-lanes stick bag packing machine running with volumetric cup filler, Complete automatic measurement and filling; it's suitable for small granule product.
