BHS-180T Horiozntal Twin-Bag Packing Machine

BHS-180 Series Horizontal Twin Bag FFS Packing Machine designed for middle & small size bags, dual filling station and twin-link function, excellent for high speed packing requirement.

The machine has a total of 14 workstations, and realizes fully automatic operation from placing the film rack to delivering the finished product.

Horizontal Sachet FFS Machine has a wide range of uses and can package powders, granules, liquids and other materials. It is often used in pharmaceuticals, cosmetics, condiments and other industries.

contact us

PRODUCT DETAIL

BHS series horizontal FFS packaging machine is a sachet form-fill-seal equipment for flat bags. It is commonly used for packaging 3-side sealed flat bags, 4-side sealed flat bags, double-linked bags, special-shaped bags, spout bags, zipper bags, etc. It is widely used in major industries such as medicine, daily chemicals, beauty, food, and condiments. Shanghai Boevan-Professional packaging machine solutions for products in various industries

Technical Parameter

Model Pouch Width Pouch Length Filling Capacity Packaging Capacity Function Weight Power Air Consumption Machine Dimensions(L*W*H)
BHS- 180T 60- 90mm 80-225mm 100ml 40-60ppm 3 side seal, 4 side seal, Twin Bag 1250kg 4.5 kw 200 NL/min 3500×970×1530mm

Packing Process

BHS-180-180T
  • 1Film Unwinding Device
  • 2Bag Forming Device
  • 3Film Guide
  • 4Photocell
  • 5Bottom Sealing
  • 6Vertical Sealing
  • 7Tear Notch
  • 8Servo Pulling System(optional)
  • 9Pouch Cutting
  • 10Pouch Opening
  • 11Air Flushing Device
  • 12Filling Device
  • 13Top Sealing
  • 14Outlet

Product Advantage

Independent Sealing Device

Independent Sealing Device

Independent pouch making, no product no seal

Higher seal strength, less leakage

Better pouch appearance

Light Walking Beam

Light Walking Beam

Higher running speed

Longer operational life span

hffs twin-bag filling and sealing machine

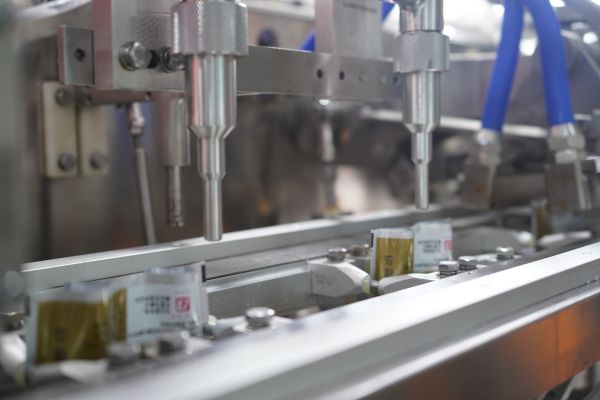

Two Filling Station

2 filling station for:

twin-bag filling sealing

3/4 side seal sachet duplex packing filling

Product Application

BHS-180 Series designed for middle& small size bags, dual filling station and twin-link function, excellent for high speed packing requirement.

  • ◉Powder
  • ◉Granule
  • ◉Viscosity
  • ◉Solid
  • ◉Liquid
  • ◉Tablet
Twin-Bag Machine shampoo pouch packing machine
Twin-Bag Machine for granule capsule
Twin-Bag Machine
Twin-Bag Machine (4)
Twin-Bag Machine (3)
Twin-Bag Machine (2)
